Produktbeschreibung

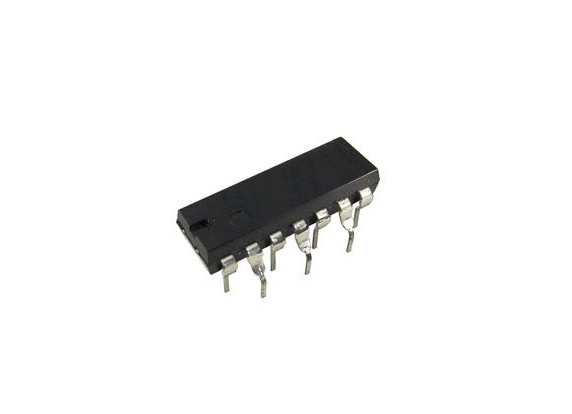

The TBA820 is an integrated monolithic audio amplifier in a 14-pin plastic power package. It is intended for use as a low frequency class B amplifier with wide range of supply voltages.
Supply voltage 3 to 16 volts
THD @ 9V, 8 Ohms, 0.5 W 0.8%
Output power @ 12 V, 8 Ohms 2 watts
Frequency response @ 3.2 Ohms 25Hz to 20KHz
Supply voltage rejection 42dB
Voltage gain closed loop 45dB
Input resistance 5M Ohms
Package 14-pin (Quad-in-line)
Diesen Artikel haben wir am 28.03.2018 in unseren Katalog aufgenommen.
