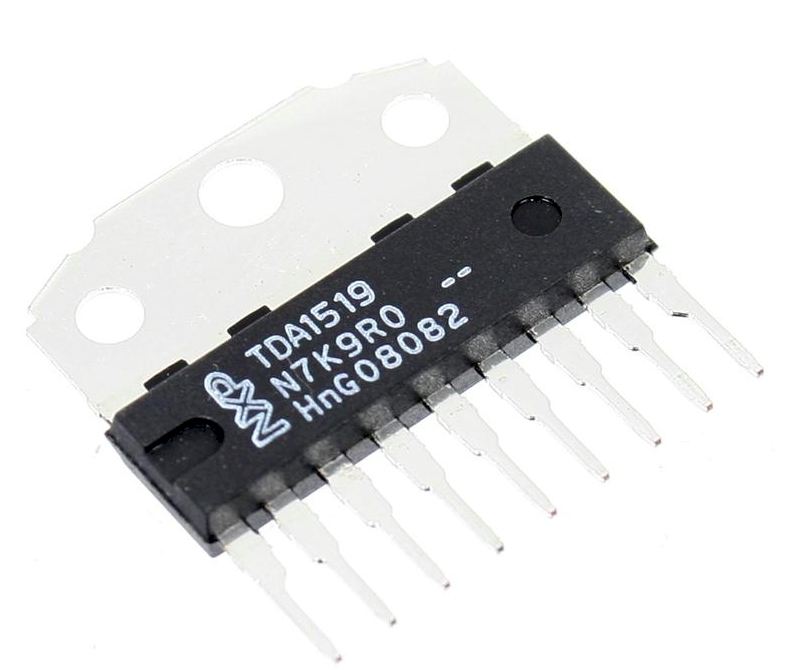

Produktbeschreibung
Supply voltage range
operating VP 6,0 14,4 18,0 V
non-operating VP - - 30 V
load dump protected VP - - 45 V
Repetitive peak output current IORM - - 2,5 A
Total quiescent current Itot - 40 80 mA
Stand-by current Isb - 0,1 100 mA
Switch-on current Isw - - 40 mA
Input impedance |ZI| 50 - - kW
Output power THD = 0,5%; 4 W Po - 5 - W
THD = 10%; 4 W Po - 6 - W
Channel separation a 40 - - dB
Noise output voltage Vno(rms) - 150 - mV
Supply voltage ripple rejection f = 100 Hz SVRR 40 - - dB
f = 1 kHz to 10 kHz SVRR 48 - - dB
Crystal temperature Tc - - 150 °C
