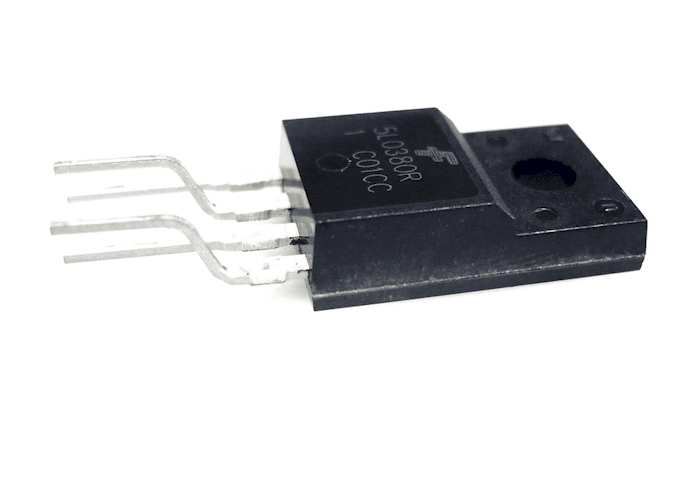

Produktbeschreibung
Drain-source (GND) voltage (1) VDSS 800 V
Drain-Gate voltage (RGS=1MΩ) VDGR 800 V
Gate-source (GND) voltage VGS ±30 V
Drain current pulsed (2) IDM 12 ADC
Single pulsed avalanche energy (3) EAS 95 mJ
Avalanche current (4) IAS − A
Continuous drain current (TC=25°C) ID 3.0 ADC
Continuous drain current (TC=100°C) ID 2.1 ADC
Supply voltage VCC 30 V
Analog input voltage range VFB −0.3 to VSD V
Total power dissipation PD (wt H/S) 35 W
Derating 0.28 W/°C
Operating temperature TOPR −25 to +85 °C
Storage temperature TSTG −55 to +150 °C
